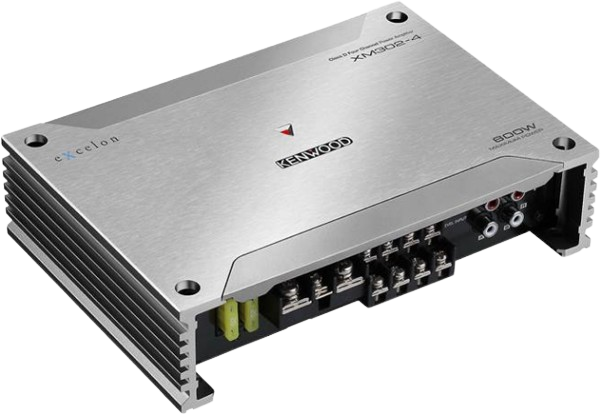

XM302-4

Excelon Channel powersports/marine amplifier

50 watts RMS x 4 at 4 ohms

75 watts RMS x 4 at 2 ohms

150 watts RMS x 2 bridged at 4 ohms

Class D amp technology

Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)

Variable bass boost on B channels (0-18 dB at 40 Hz)

Conformal-coated circuit boards — suitable for powersports and marine applications

Preamp and speaker-level inputs

Wiring and hardware not included with amplifier

8-gauge power and ground leads recommended

Fuse rating: 20A x 2

8-7/16″W x 2-1/8″H x 6″D
