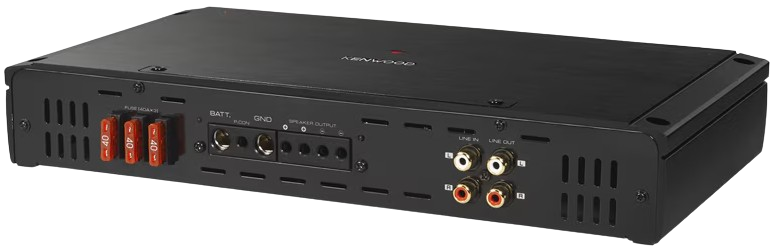

XR1000-1

Mono subwoofer amplifier

500 watts RMS x 1 at 4 ohms (1,000 watts RMS x 1 at 2 ohms)

CTA-2006 compliant

Class-D amp design — frequency response: 20-200 Hz

Variable low-pass filter (50-200 Hz, 12 or 24 dB/octave)

Variable subsonic (infrasonic) filter (15-40 Hz, 24 dB/octave)

Adjustable bass boost (0-18 dB at 40 Hz)

Wired remote volume control included

Cooling fan

Preamp inputs and outputs

Speaker-level inputs (require speaker wire to RCA adapters) feature signal-sensing turn-on

Fuse rating: 40A x 3

Wiring and hardware not included with amplifier

4-gauge power and ground leads recommended

12-9/16″W x 2-1/8″H x 7-1/4″D
